Non-graphical installer

Requirements

Server running Ubuntu 24.04
Internet connection
SSH terminal access
Root access

Installation process

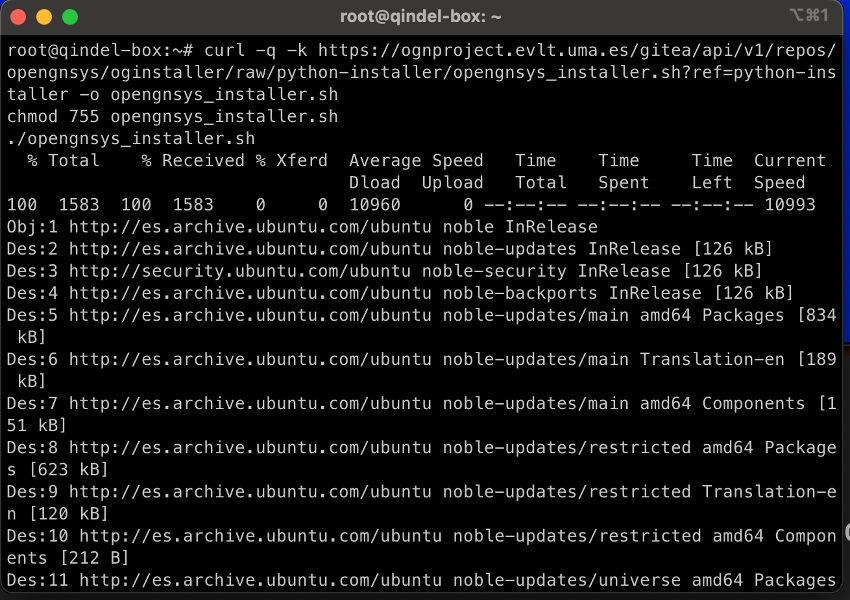

Run the following commands:

 curl -q -k https://ognproject.evlt.uma.es/gitea/api/v1/repos/opengnsys/oginstaller/raw/non_graf_installer/python-installer/opengnsys_installer-v2.sh?ref=main -o opengnsys_installer.sh

chmod 755 opengnsys_installer.sh

./opengnsys_installer.sh

If you want to install the latest packages built from each repository’s main branch, run:

 curl -q -k https://ognproject.evlt.uma.es/gitea/api/v1/repos/opengnsys/oginstaller/raw/non_graf_installer/python-installer/opengnsys_installer-v2.sh?ref=main -o opengnsys_installer.sh

chmod 755 opengnsys_installer.sh

./opengnsys_installer.sh nightly

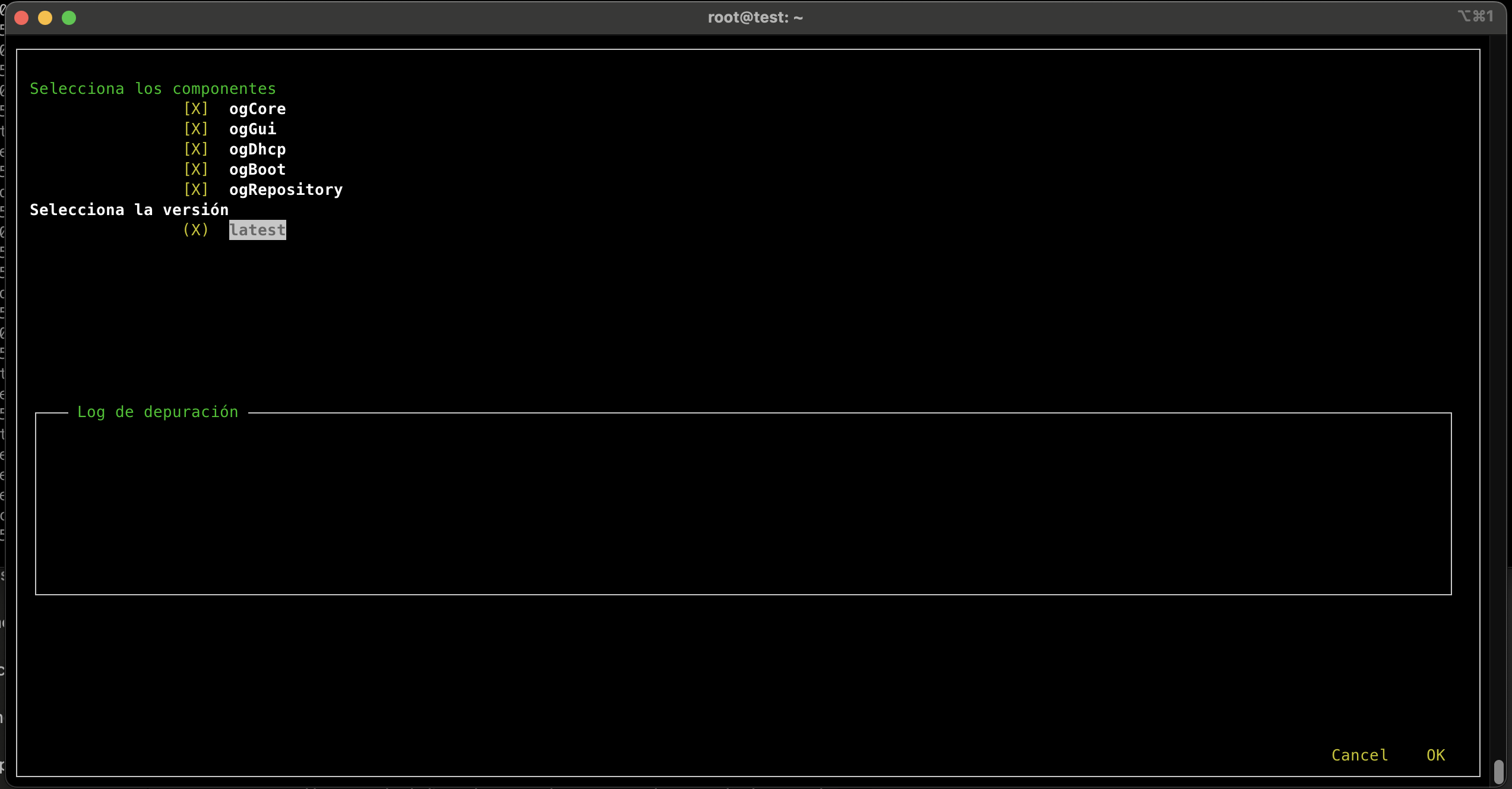

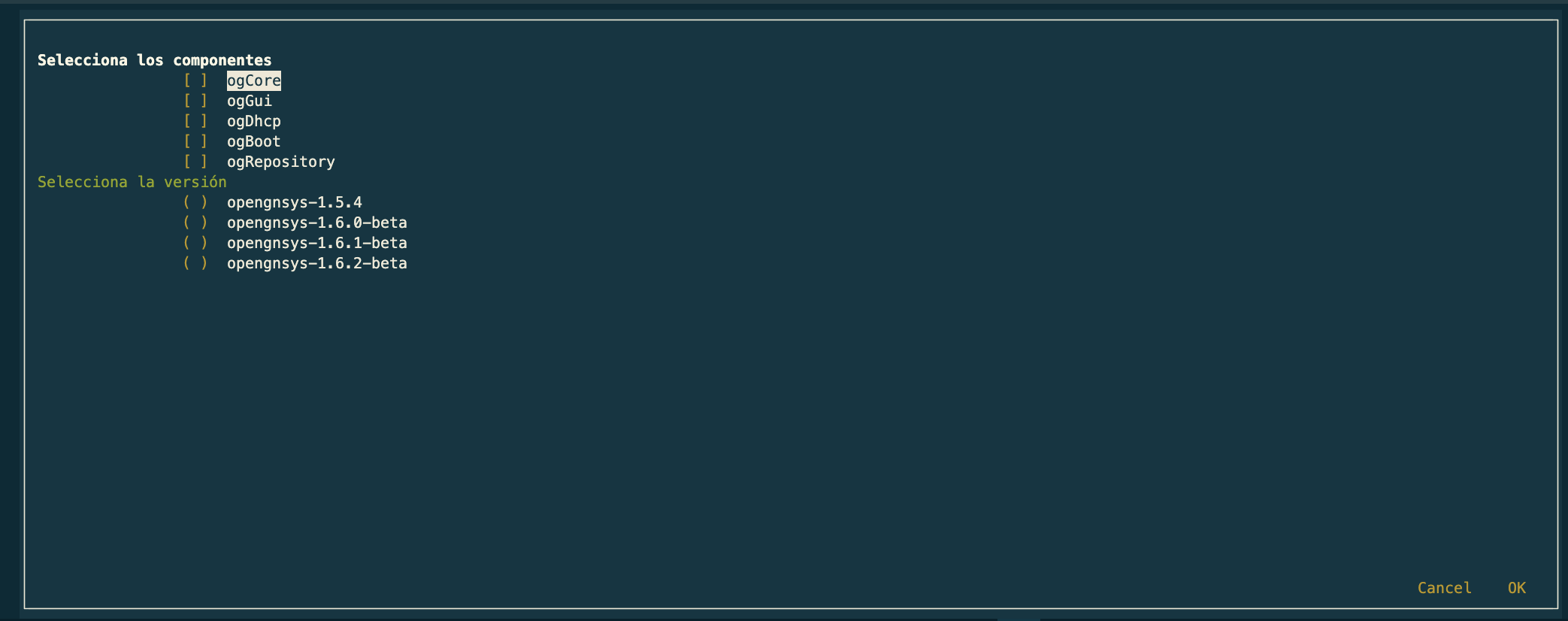

A screen appears showing the components to install and the version to install. Select the desired components and the required product version. In this example we’ll select all components and the version opengnsys_devel-0.0.10.

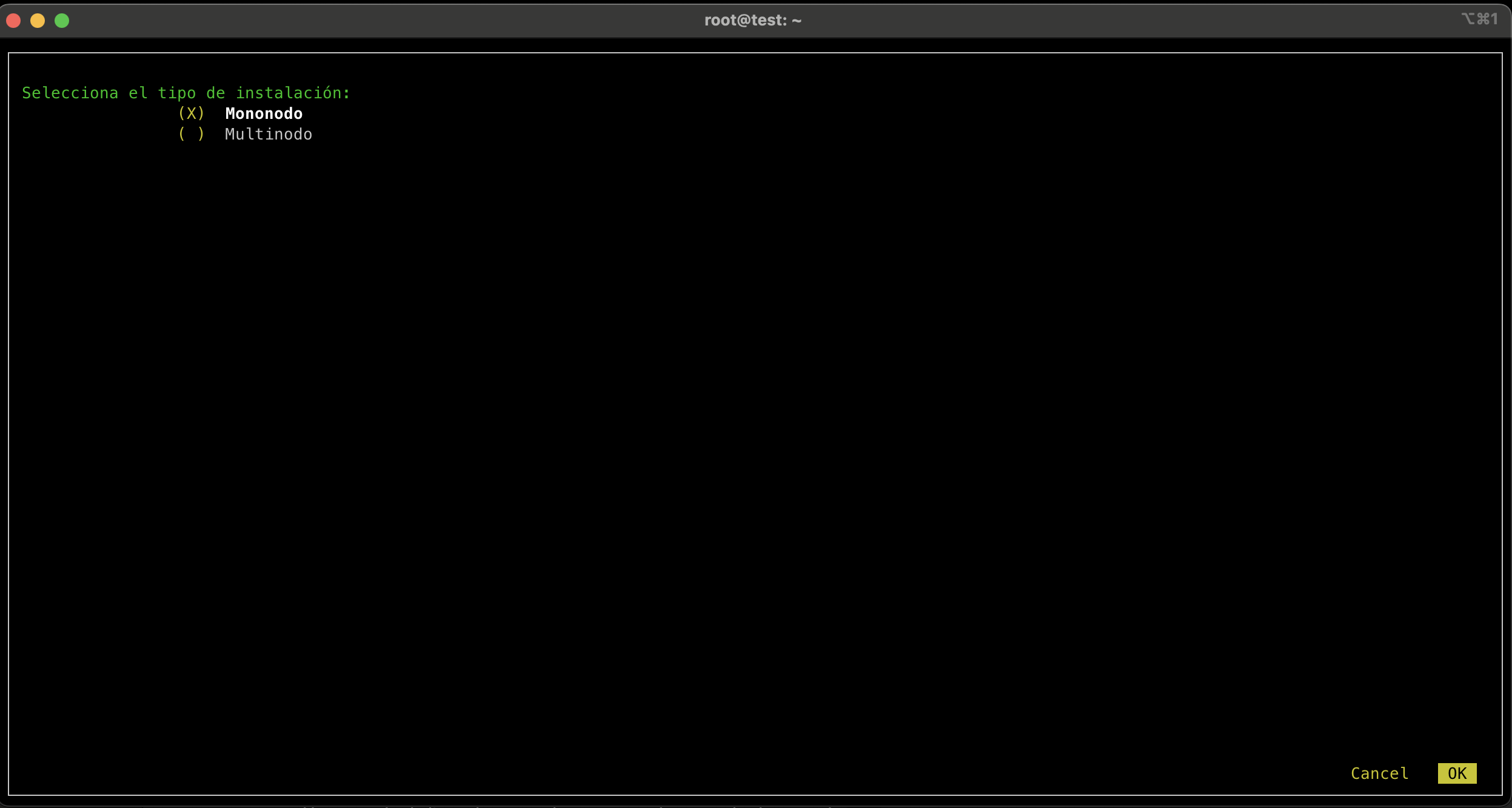

Installation type selection

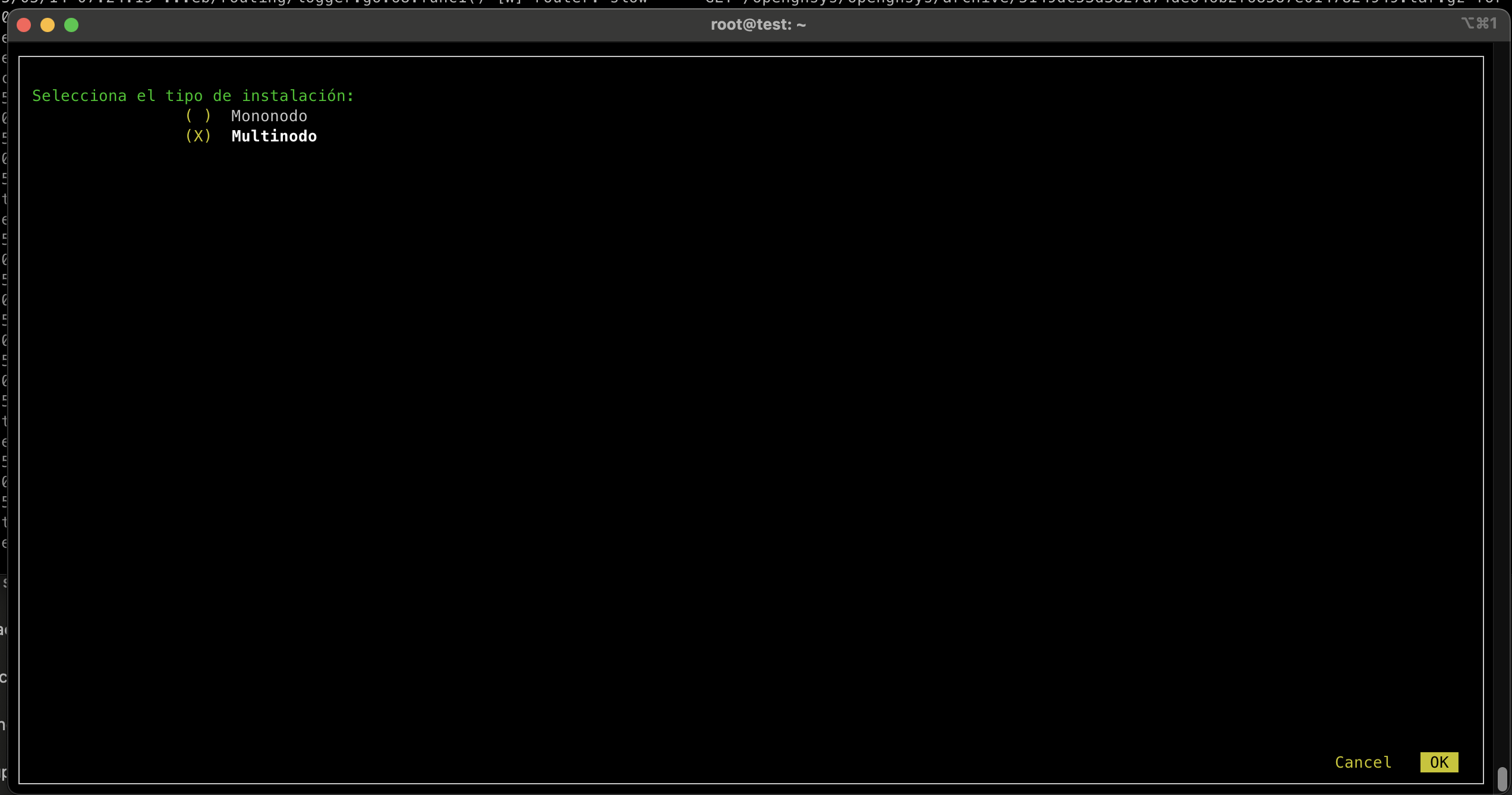

Next you’ll choose whether to install all components on a single node or across multiple nodes.

Single-node installation

If you select the single-node option:

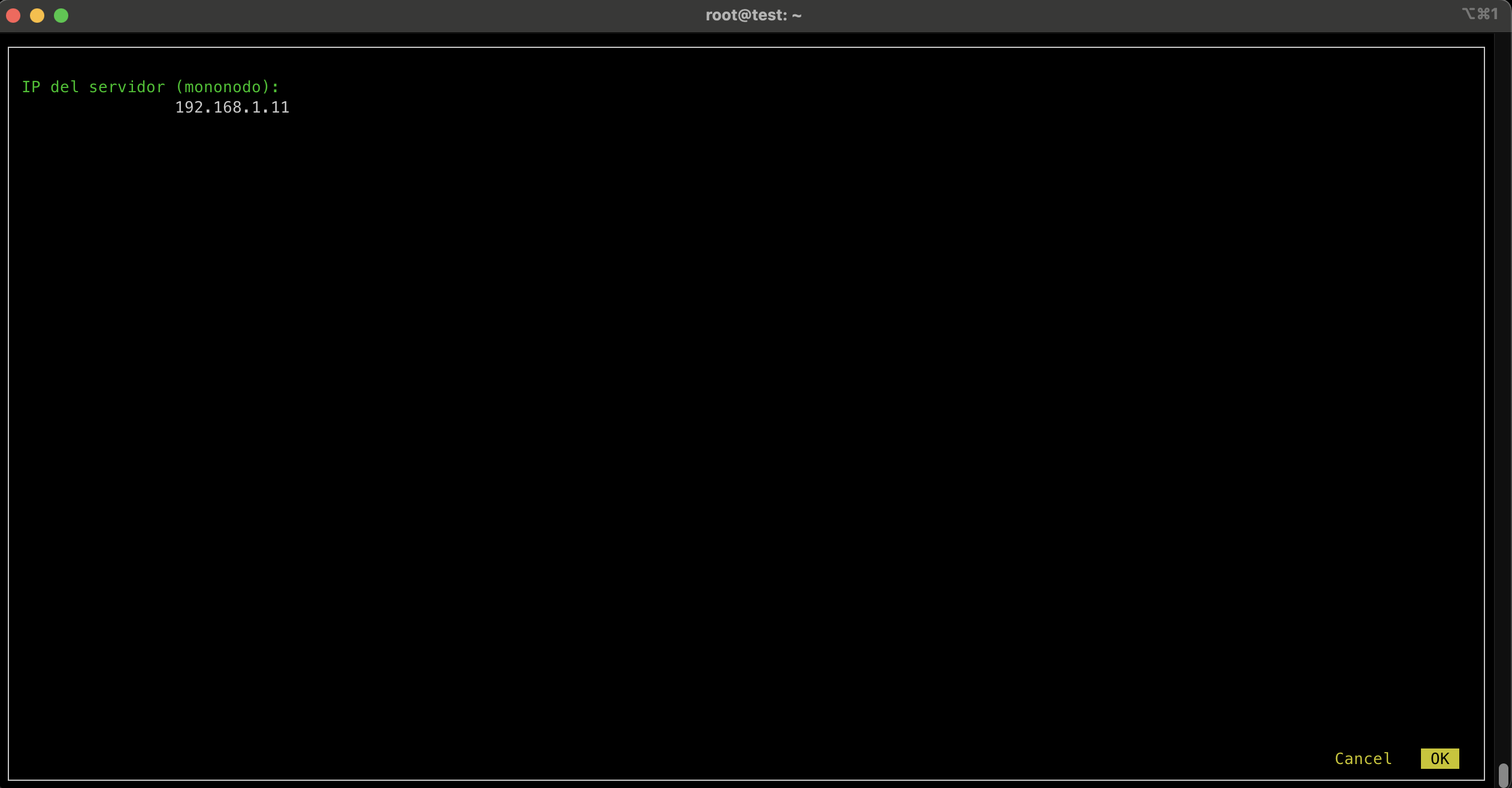

You’ll then be prompted to enter the IP address where all components will communicate.

Next you’ll see a screen listing all selected components; just press OK.

Multi-node installation

For a multi-node installation, where each component can reside on separate machines:

You’ll be prompted to enter the IPs of the machines where each component will be deployed.

Once these steps are completed for either single-node or multi-node, you’ll be shown screens to confirm the input parameters. If they’re correct, pressing OK is sufficient. Details for each component follow.

ogCore

For the ogCore service the required data are:

Administrator user: default value ogadmin
User password: default value 12345678

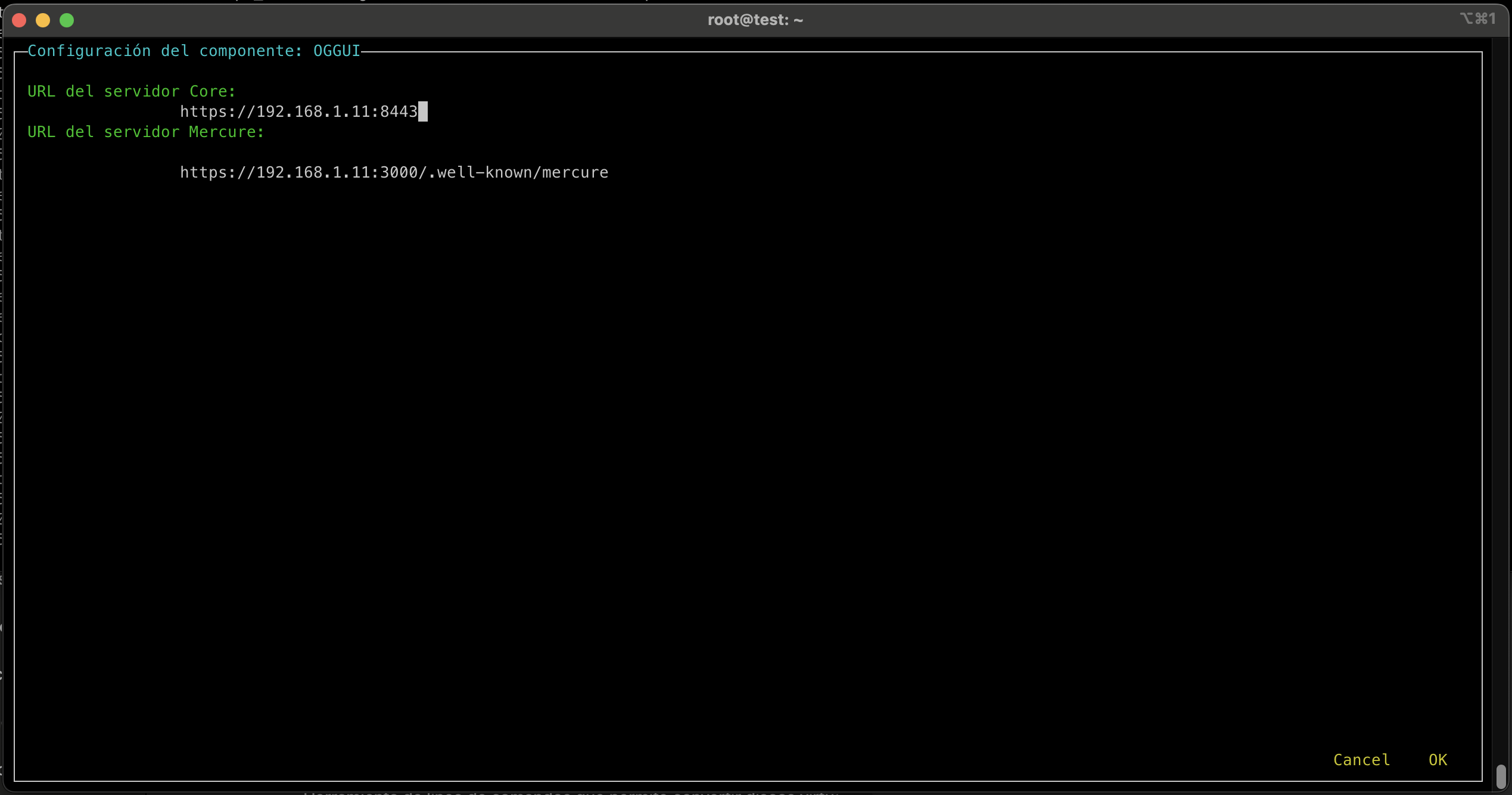

ogGui

For the graphical interface service, the required data are:

ogCore server connection URL: default https://<default-route-interface-IP>:8443
Mercure connection URL: default https://<default-route-interface-IP>:3000/.well-known/mercure

ogDHCP

For the DHCP service the parameters requested are:

Network interfaces to serve DHCP. A list of available interfaces is shown; select the ones you want to provide IPs on.
ogBoot server IP (default: IP of the default-route interface)
DHCP server IP (default: IP of the default-route interface)

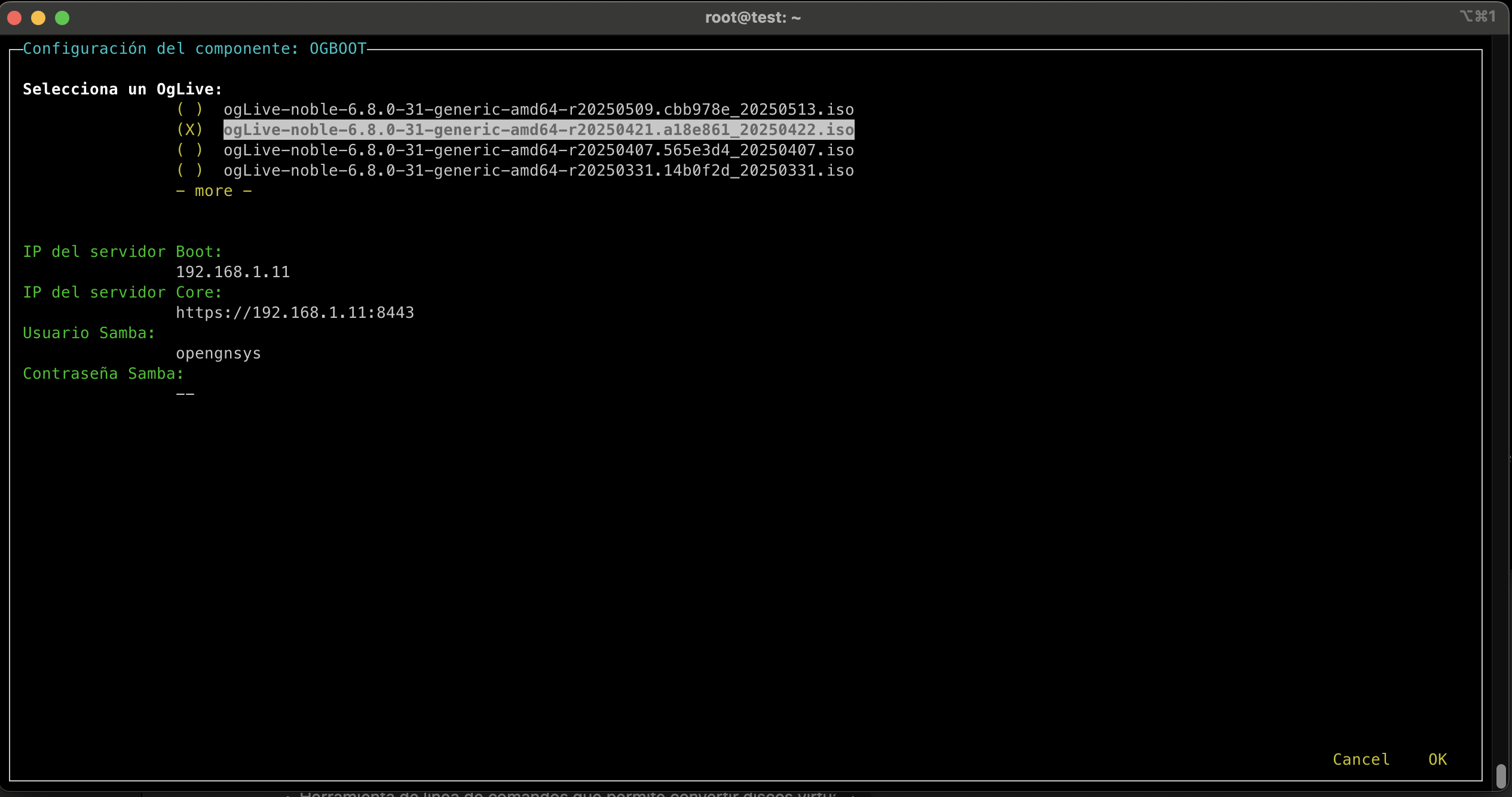

ogBoot (PXE)

Required parameters:

ogLive to install on the boot server. The list comes from the ogLives available in the downloads directory.
ogBoot server IP (default: IP of the default-route interface)
Port for ogBoot service (default: 8082)
ogCore URL (default: IP of the default-route interface)
Samba export user (note: this is embedded in the ogLive, so don’t change it unless your ogLive was created with a custom user)
Samba user password (note: as above, embedded in the ogLive)

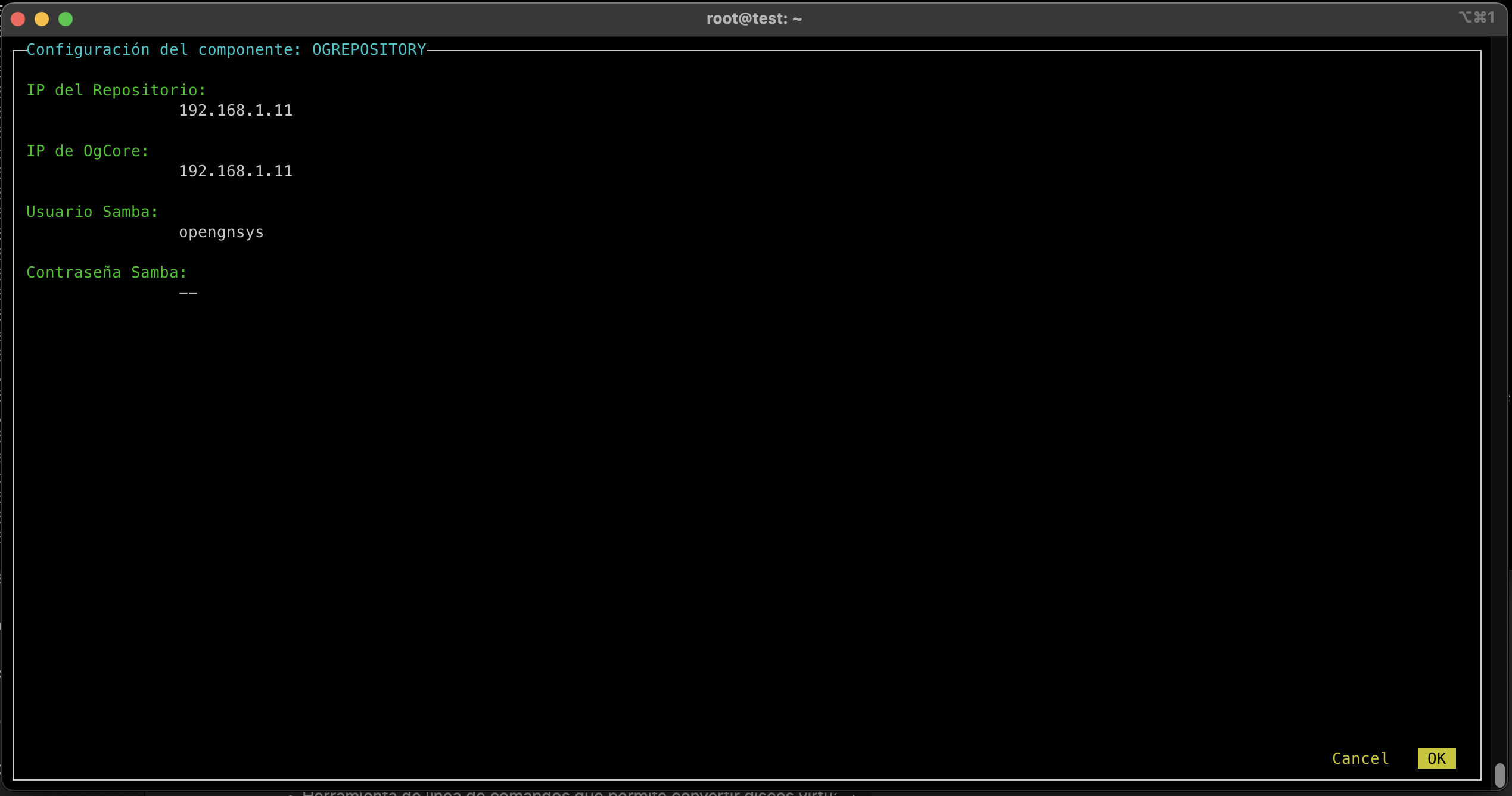

ogRepository

Required parameters:

ogRepository service IP (default: IP of the default-route interface)
ogCore service IP (default: IP of the default-route interface)
Samba export user (note: embedded in the ogLive)
Samba user password (note: embedded in the ogLive)

Installation

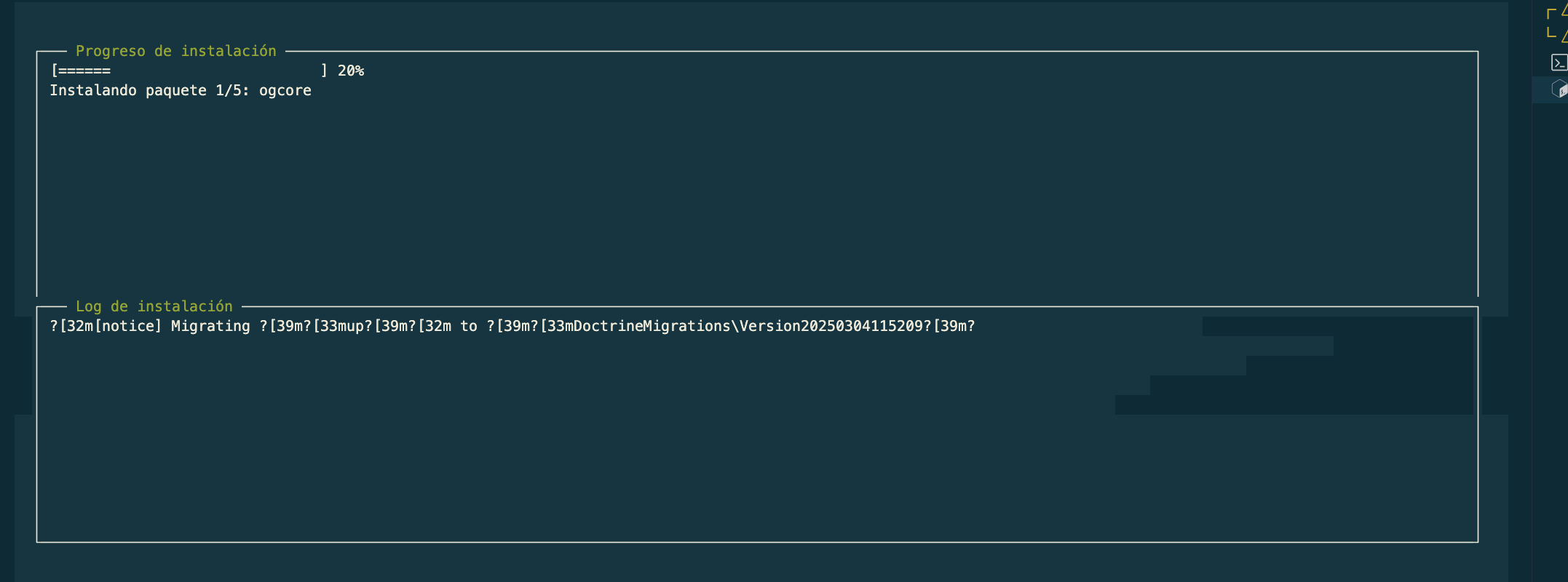

Once all forms are completed, the installation process begins and a screen shows progress:

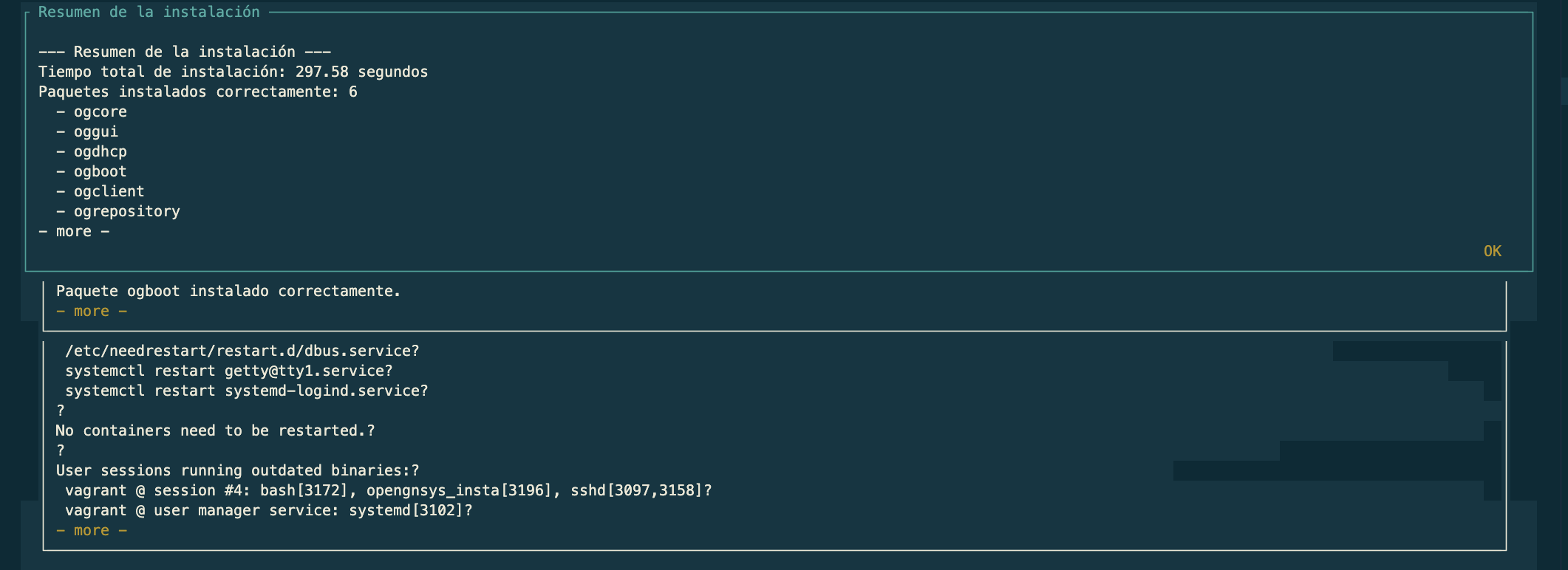

When installation finishes, a summary appears:

The file /opt/opengnsys/release is created with the installed version:

(og) root@install:~# cat /opt/opengnsys/release
Installed version: opengnsys-1.6.0-beta

NOTE: If installing from the nightly repository, the release file is not created

Service check

After installation completes, verify that services installed correctly and are functioning as expected.

User permissions

All components are installed under /opt/opengnsys/, where is:

ogboot
ogdhcp
ogrepository
ogcore
oggui
ogclient

There is also a folder named ogclient_log used for client-mounted logs; this will be removed in future releases.

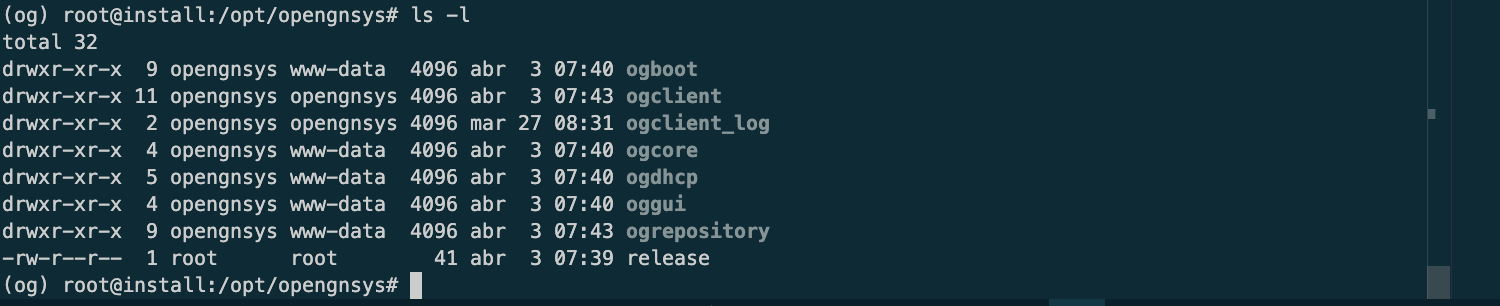

All directories belong to user opengnsys and group www-data, except ogclient and ogclient_log which belong to group opengnsys.

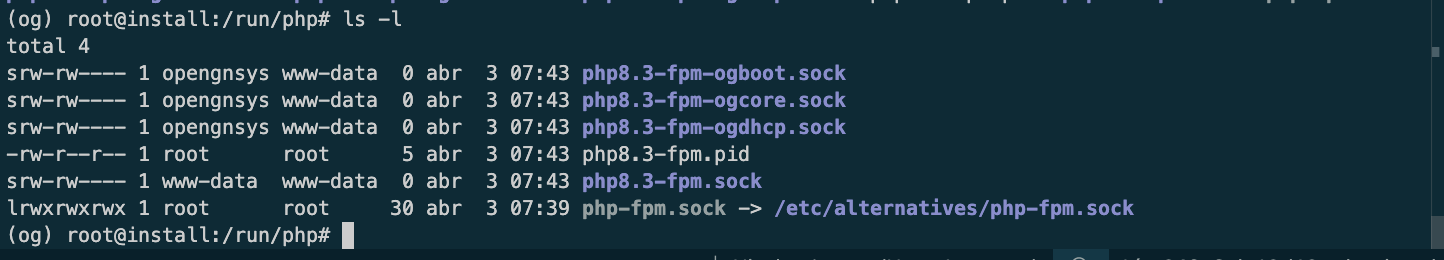

In /run/php/ you’ll find the sockets serving the ogboot and ogdhcp APIs. If services are running, these files must belong to user opengnsys.

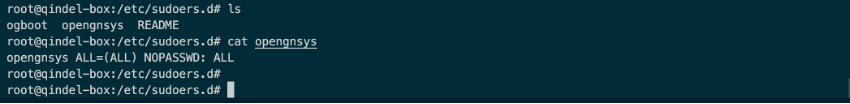

In /etc/sudoers.d/ you’ll find an opengnsys file with the following configuration:

Stopping and starting services

All services run behind their own API and are managed as standard Linux services, though each has its particulars.

ogCore

Description

The ogCore service comprises three components:

API
Database
Mercure

Both the API and Mercure run behind an nginx reverse proxy.

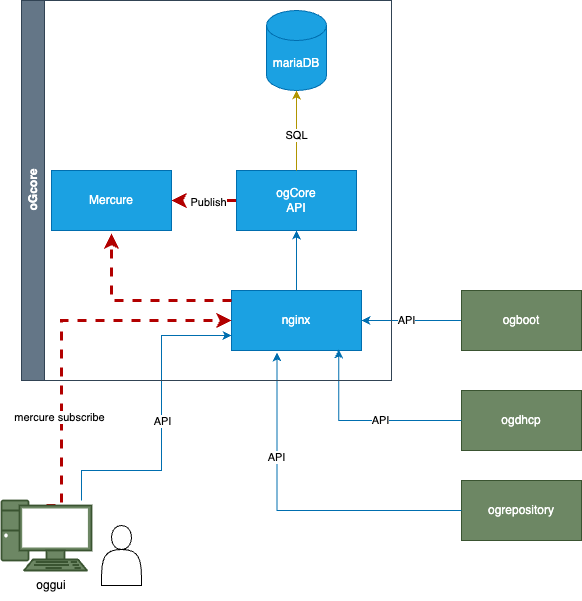

The architecture of ogCore is shown in this diagram:

Stopping and starting

# Arranque
root@qindel-box:~# systemctl start nginx

# Parada
root@qindel-box:~# systemctl stop nginx

# Estado
root@qindel-box:~# systemctl status nginx

# Logs del servicio
root@qindel-box:~# journalctl -f SYSLOG_IDENTIFIER=ogcore

Configuration files

Located in /opt/opengnsys/ogcore/

File	Description

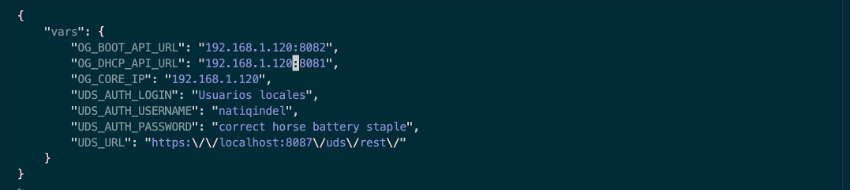

/opt/opengnsys/ogcore/api/env.json	Definition of endpoints ogCore connects to
/opt/opengnsys/ogcore/api/.env.local.php	Internal Symfony file
/etc/nginx/sites-enabled/ogcore.conf	nginx config for the ogCore API
/etc/nginx/sites-enabled/mercure.conf	nginx config for the Mercure service

Accessing the service

The ogCore API is available on the installation IP at port 8443. To access the service API, go to:

https://ip:8443/

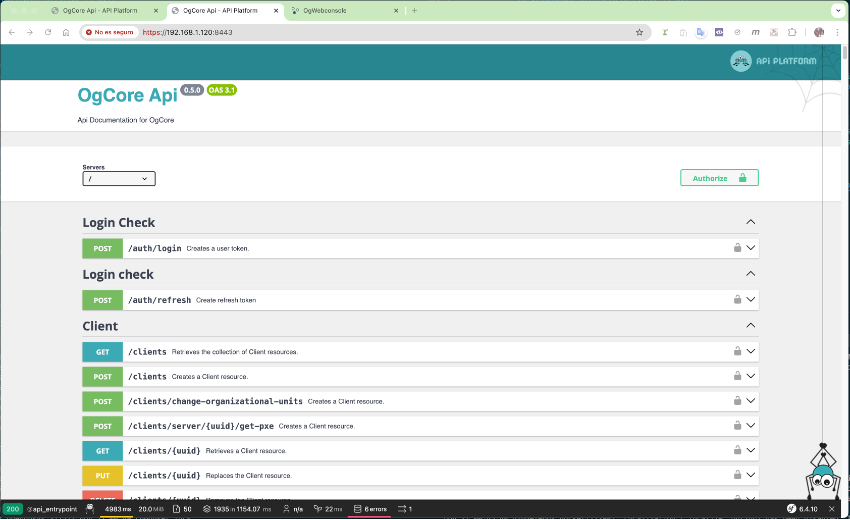

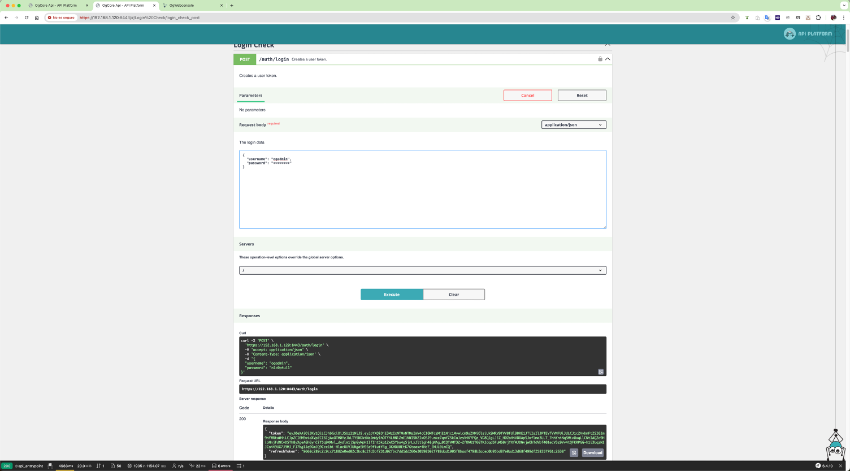

You can test endpoints via Swagger:

ogGui

Description

A static Angular application served by nginx.

Stopping and starting

# Arranque
root@qindel-box:~# systemctl start nginx

# Parada
root@qindel-box:~# systemctl stop nginx

# Estado
root@qindel-box:~# systemctl status nginx

As a client-side app, logs appear in the browser’s debug console, and you can view nginx logs for access and errors.

Configuration files

File	Description
/etc/nginx/sites-enabled/oggui.conf	URL of the endpoint pointing to ogCore
/opt/opengnsys/oggui/etc/config.json	Mercure and ogCore endpoints

Accessing the service

To access the GUI, go to port 4200 on the deployment host:

https://ip:4200/

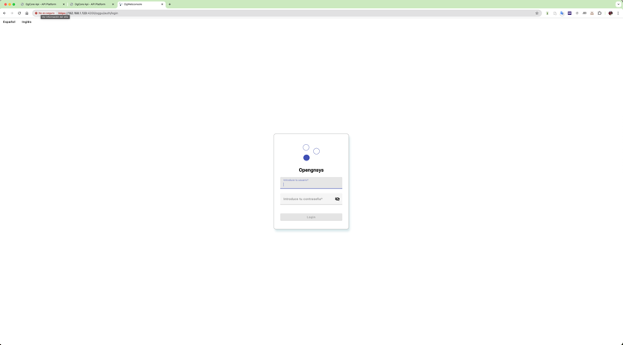

Enter the user and password configured during installation:

ogBoot

This service includes multiple components running on the deployment host. The API runs under nginx, handling HTTP/S, Samba exports, and TFTP boot.

The ogBoot code is in /opt/opengnsys/ogboot/, with key directories:

client: Samba-exported images and cloning engine
tftpboot: Samba-exported iPXE kernels and ogLive images
Other folders are the API itself

Stopping and starting

nginx

# Arranque
systemctl start nginx
systemctl start tftpd-ha
systemctl start samba

# Parada
systemctl stop nginx
systemctl stop tftpd-ha
systemctl stop samba

# Reinicio
systemctl restart nginx
systemctl restart tftpd-ha
systemctl restart samba

# Status
systemctl status nginx
systemctl restart tftpd-ha
systemctl restart samba

Logs for nginx and the API are in:

/var/log/nginx/ogboot_access.log
/var/log/nginx/ogboot_error.log

Configuration files

Location	File	Description
/opt/opengnsys/ogboot/	.env	Symfony configuration file
/etc/nginx/sites-available/	ogboot.conf	nginx configuration file
/etc/samba	smb-ogboot.conf	Samba configuration file
/etc/samba	smb-ogclient.conf	Samba config for the clone engine

Accessing the service

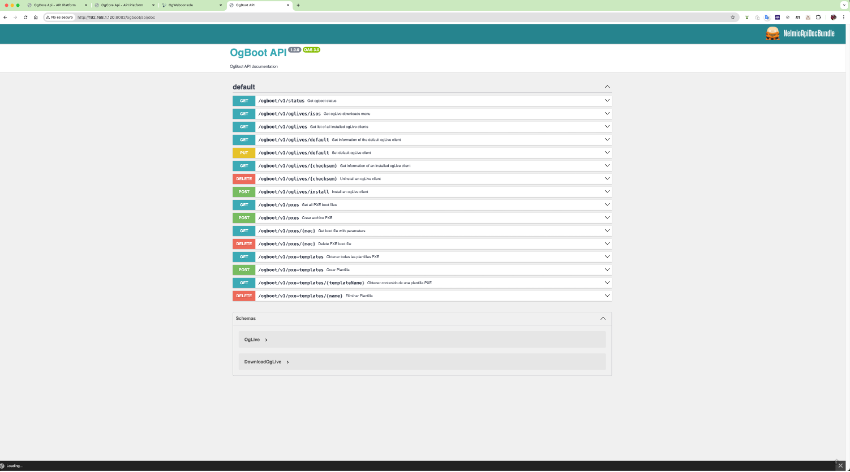

The ogBoot API listens on port 8082 via HTTP. To view the API docs:

http://ip:8082/ogboot/api/doc

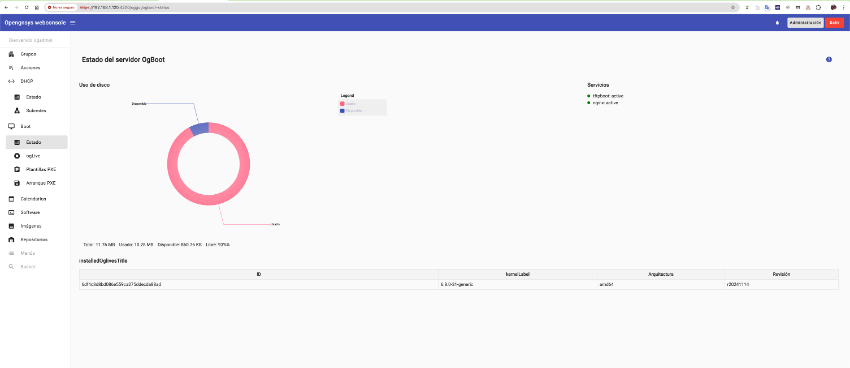

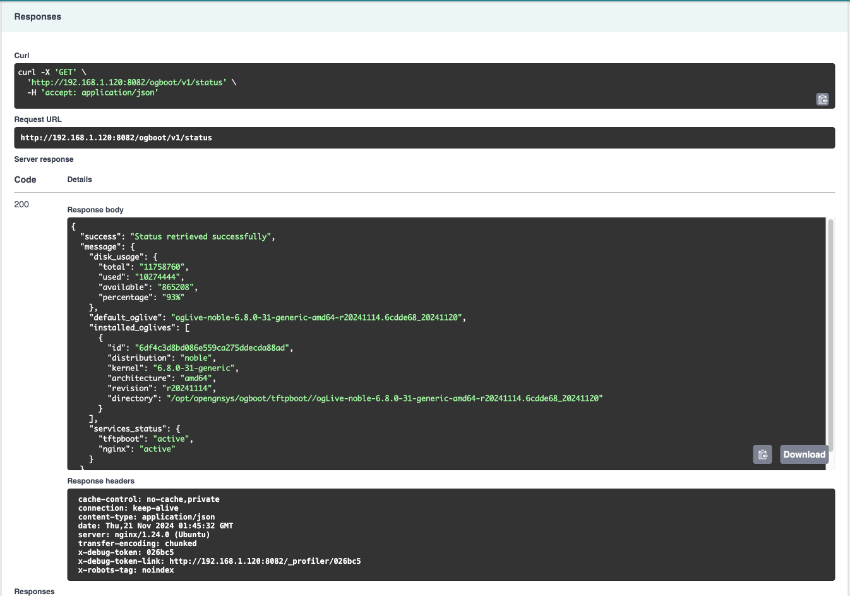

If all is well, the status endpoint returns something like:

ogDHCP

Description

Manages DHCP using Kea, controlled by a Symfony API running under nginx.

Stopping and starting

# Arranque
systemctl start nginx
systemctl start kea-dhcp4-server
systemctl start kea-ctrl-agent

# Parada
systemctl stop nginx
systemctl stop kea-dhcp4-server
systemctl stop kea-ctrl-agent

# Restart
systemctl restart nginx
systemctl restart kea-dhcp4-server
systemctl restart kea-ctrl-agent

# Status
systemctl status nginx
systemctl status kea-dhcp4-server
systemctl status kea-ctrl-agent

Log files

nginx:
/var/log/nginx/ogdhcp_access.log
/var/log/nginx/ogdhcperror.log

Configuration files

Location	File	Description
/opt/opengnsys/ogdhcp/	.env	Symfony configuration file
/etc/nginx/sites-available/	ogdhcp.conf	nginx configuration file

Accessing the service

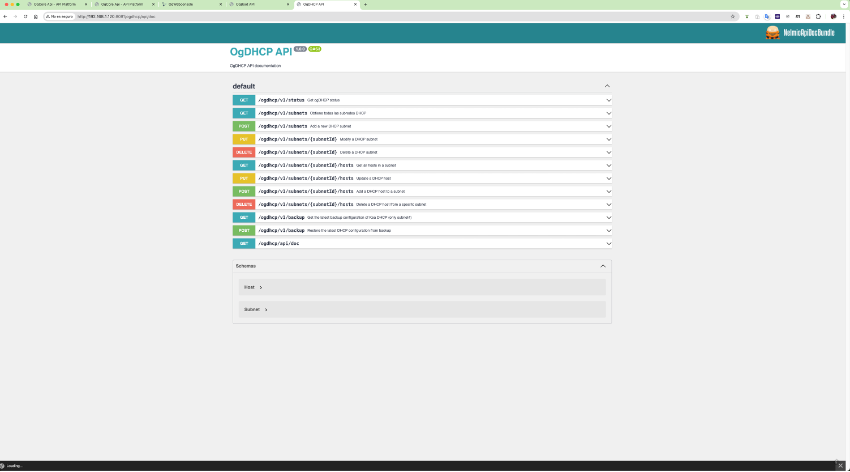

The ogDHCP API listens on port 8081 via HTTP. To view the API docs:

http://ip:8081/ogdhcp/api/doc

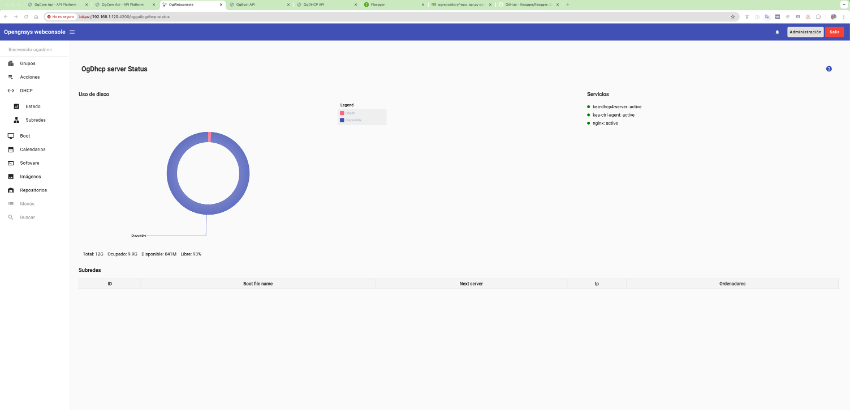

If all is well, the status endpoint returns something like:

ogRepository

Description

Includes multiple components on the deployment host. The API runs under Gunicorn with Flask, and Samba serves /opt/opengnsys/ogrepository/images under user opengnsys.

Stopping and starting

# Arranque
systemctl start ogrepo-api
systemctl start samba

# Parada
systemctl stop ogrepo-api
systemctl stop samba

# Status
systemctl status ogrepo-api
systemctl status samba

# Revisión de logs
journalctl -xeu ogrepo-api
journalctl -xeu samba
